PSD2 Strong Customer Authentication

Within the guidelines of Open Banking PSD2 standardization, Ebury, as a Core Banking System (CBS) has to provide a Strong Customer Authentication (SCA) service.

PSD2 SCA is an authentication workflow making sure that financial transactions initiated via a Third Party (TPP) would still directly authenticate the Payment Service User (PSU) against the login system of the financial institution that is involved in performing the actual payment.

Ebury is using Equens Worldline (eWL) Digital Banking Platform (DBP) as a Third Party Provider (TPP). Therefore we need to implement a service that complies to eWL specifications.

Problem Description

According to Open Banking Standards, as a Core Banking System (CBS), Ebury has to provide a Strong Customer Authentication (SCA) solution, aligned to the workflows of Equens Worldline (eWL), the Digital Banking Platform (DBP) of Ebury's choice.

Ebury's SCA implementation has to precisely correspond to API contracts defined by eWL, performing all mandatory steps of the the Authentication Workflow.

The outcome of the authentication session is an Access Token, generated for the PSU, providing access to requested CBS (Ebury) services. The access token is created by the CBS, it is re-usable and has a limited lifetime.

eWL is responsible for archiving SCA related information for audit reasons. Thus data only has to be stored for the (short) time of validity on Ebury side.

Background

Ebury is strongly focusing on complying to Open Banking Standards defined by the European Union. The integration of necessary services is in progress, with a high priority. PSD2 SCA is part of this effort.

The Authentication Workflow

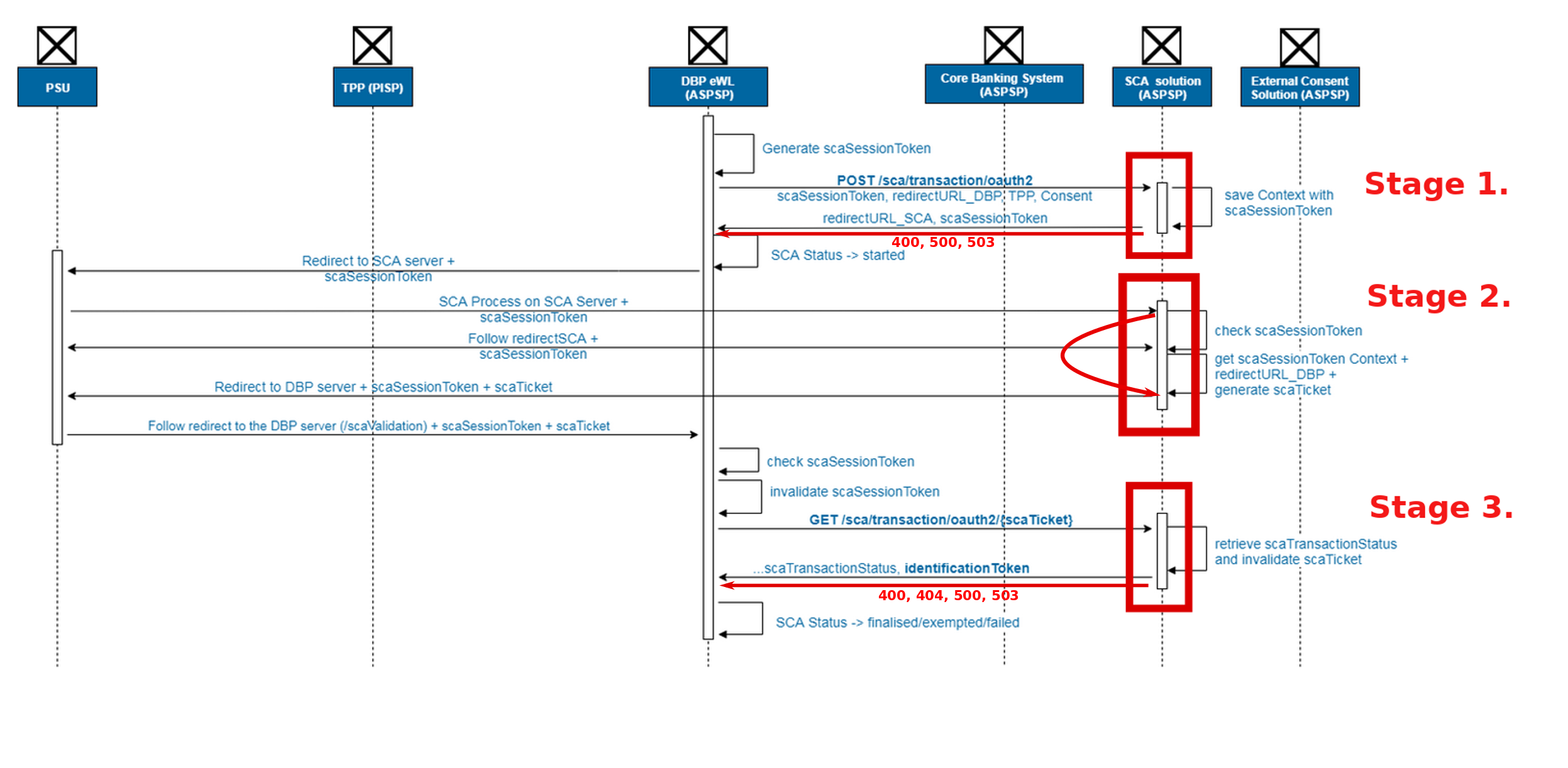

This workflow diagram (from eWL Documentation) describes the basic screenplay of the PSD2 SCA authentication flow.

SCA workflow Phase 1.

NOTE: The labels on the workflow diagram may, or may not precisely describe payload fields or query parameters. Please refer to each individual endpoint for the correct naming.

The workflow has to be respected in all use-cases, including errors and failures. No matter what, we have to make sure that the full chain can be carried out, without being blocked at any stage. The only exception is the absence of session data on CBS-side. (A 401 response is allowed in this case.)

The validity time of all session-related information is a fixed, configurable time-period (5 minutes). Similarly a retention period (1 hour) has to be preserved, before erasing all session data.

At the end of the authentication workflow, all session-related data is removed on CBS-side, regardless of the outcome of the process.

The scaTicket

The lifetime of the PSD2 SCA authentication process (so called "transaction") is traced via session tokens.

The DBP defines a session identifier (scaSessionToken) and communicates it to the CBS and controls the validity.

On CBS-side a related session identifier has to be created (scaTicket), directly linked to the DBP-side identifier (scaSessionToken) in a one-to-one relation. It does not express authentication status and has no secure content.

This CBS-side session identifier is crucial to be available until the final stage of the authentication flow. It remains valid after the validity of the DBP-side identifier, and it is being used in the final stage of the workflow (see Stage 3. URL /sca/transactions/oauth/{scaTicket}).

Stage 1.

In the initial stage of the authentication process, the following information is communicated by the DBP to the CBS:

the scaSessionToken
details of the financial transaction (consent)
redirection URL back to the DBP (this will be used at end of Stage 2.)

In response the CBS has to send the URL where CBS SCA login pages can be accessed by the PSU.

Security of the communication is assured by mutual TLS at this stage.

Stage 2.

In Stage 2. user authentication happens between CBS and the PSU. It is up to the CBS to handle the authentication flow according to their convenience.

There's a direct interaction between the CBS and the PSU, no action is performed by the DBP.

The outcome --whether the PSU is successfully authenticated or not-- is not (yet) communicated to the DBP, but has to be stored internally on CBS side.

At the end of Stage 2., initiative is handed back to the DBP, using the redirection URL received in Stage 1., with both session IDs as parameters.

Stage 3.

By the final stage of the authentication flow, scaSessionToken is already invalidated on DBP side. Therefore the scaTicket is used in the contact URL, so that the session data could be retrieved on CBS side.

CBS has to check the status of the authentication flow, stored internally in Stage 2.. In case the user authenticated successfully, the CBS Access Token object (identificationToken) is created providing access to Ebury services. The validity time of the token depends on the type of the transaction (PIS/AIS).

The overall result of the authentication workflow is expressed by the scaTransactionStatus field. Any errors that may have occurred during the process could be expressed here.

Concerning potential status labels, here are examples of usages:

SCA_OK: successful authentication
SCA_CANCEL: authentication cancelled by the user
SCA_TIMEOUT: authentication process took too long
SCA_EXEMPTED: no authentication is required
SCA_NOK: incorrect credentials
REQUEST_REJECTED: bad request
SCA_OTHER_ERROR: all possible other errors

The message displayed to the user will be transformed to messages based on the scaTransactionStatus, according to eWL documentation, Errors Displayed to PSU. In general, either the authentication is validated (SCA_OK, SCA_EXEMPTED), or not.

The status of the SCA workflow remains available on DBP-side. Being able to distinguish between various outcomes is useful for analysis purposes.

At the end, CBS has to return:

the outcome of the SCA authentication session (scaTransactionStatus)
the CBS Access Token, if any (identificationToken)

Communication is securized again via mutual TLS authentication.

Solution

Here we present our solution for the problem in detail, according to the three main stages described above.

Overview

Given that the requirements, workflows and expected visual interfaces are very similar to functionalities of the Ebury API Auth Service, we chose not to implement a new service, but to extend API Auth with SCA functionality.

DyanmoDB seemed well-suited to the requirements (short-term, temporary session data), as it has a native clean-up mechanism on data expiry -- greatly simplifying processes for us. Extending the API Auth service also allows us to re-use the API Auth DynamoDB database.

Yet, despite the similarity of workflows, we define new endpoints for all new functionalities, that reside in a namespace dedicated to SCA within API Auth.

Only the HTML templates are re-used, preserving unified looks for API Auth login pages.

Currently there are two limitations of the SCA workflows:

there is only one brand allowed (configurable, current value: EBP)

Stage 1: Initializing the session

When the user (PSU) contacts eWL (DBP) in attempt to make a payment, a authentication transaction session is started.

In Stage 1. the CBS receives:

the scaSessionToken (DBP-side session identifier)
the consent field describing the financial transaction details
the dbpRedirectURL that is to be used in the final step of Stage 2.

The consent field highlights what kind of financial transaction we are dealing with. Validity time is based on configurable settings. Currently it goes as below, depending on contents of the consent data:

aisconsent:
- aisconsent.validUntil field is not specified: 90 days
- aisconsent.validUntil field is specified: maximum of 90 days or the value of the field
pisconsent: 1 hour

Session data to be saved internally on CBS-side for later usage:

sca_session_token: also used as a unique reference to the internal data structure
access_token_ttl: lifetime of the Access Token
redierct_url: value of the dbpRedirectURL
scaTransactionId: a unique ID (UUID) is to be generated and saved for each transaction.
authorized: authentication status (default: FALSE)

Furthermore the reverse relation has to be created, allowing to retrieve session data based on the CBS-side identifier (scaTicket) in preparation to Stage 3..

Validity and lifetime for both datastructures is configurable (see current values in The Workflow).

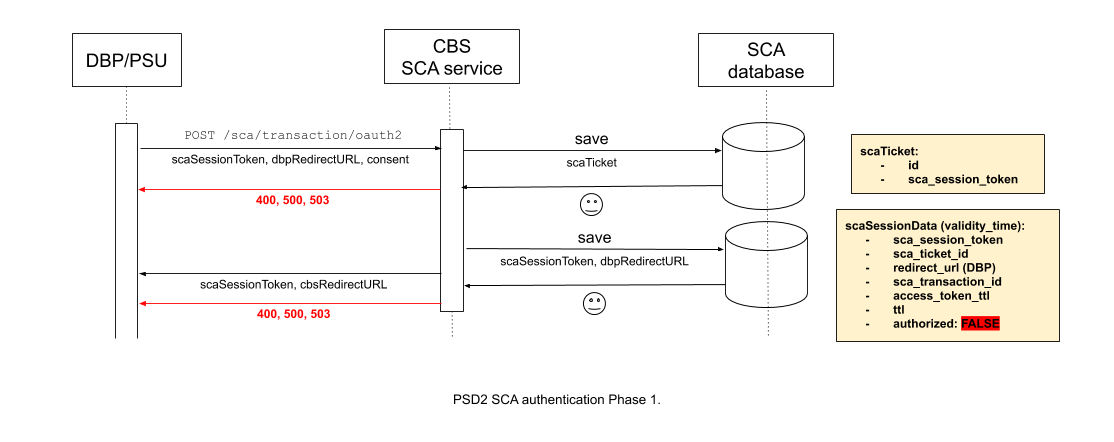

SCA workflow eWL

Based on all the above, the specification of the corresponding endpoint goes as below. This contract is strictly regulated by eWL.

`POST /sca/transaction/oauth2`

Initial status:

DBP-side session ID, consent information and DBP redirection URL (for Stage 2.) were received

Actions:

Calculating and setting access_token_ttl value
Creating scaTicket and scaSessionData objects
Linking them together as a mutual reference
Saving session information internally

NOTE: Most of these values won't be used in Ebury SCA authentication

{
   Request-ID: string *,            # ID of the request, unique to every call from a TPP or PSU
   PSU-Accept-Language: string,     # Accept Language header between PSU and TPP, if available.
   PSU-IP-Address: string,          # IP Address field between PSU and TPP (if request was initiated by PSU). Format ipv4.
   PSU-IP-Port: string,             # IP Port field between PSU and TPP, if available.
   PSU-Accept: string,              # Accept header fields between PSU and TPP, if available.
   PSU-Accept-Charset: string  ,    # Accept header fields between PSU and TPP, if available
   PSU-Accept-Encoding: string,     # Accept header fields between PSU and TPP, if available.
   PSU-User-Agent: string,          # Agent header field of the HTTP request between PSU and TPP, if available.
   PSU-Device-ID: string,           # UUID for a device (or device dependant application), which is used by the PSU, if available.
   PSU-Geo-Location: string,        # The forwarded Geo Location of the corresponding http request between PSU and TPP if available.
   tppId: string *,                 # Id of the Third Party Provider
   tppName: string *,               # Name of the Third Party Provider
}

Payload

NOTE: The consent field contains full details of the payment (i.e. a big chunk of data). We don't need to worry about the actual details, thus the snippet above is simplified. Yet we distinguish between AIS and PIS type of requests.

{
    scaSessionToken: string *,   # DBP session identifier
    dbpRedirectURL: string *,    # URL used once the login session is successfully completed
    consent:
        scope: string *,         # "PAYMENT_INITIATION" or "PAYMENT_CANCELLATION"
        pisconsent: PISConsent   # PIS consent details
}

{
    scaSessionToken: string *,   # DBP session identifier
    dbpRedirectURL: string *,    # URL used once the login session is successfully completed
    consent:
        scope: string *,         # "ACCOUNT_ACCESS"
        aisconsent:
            validUntil: string   # optional validity limit
            [..]
}

Response (`200 OK`)

{
    scaSessionToken: string *   # DBP session identifier
    cbsRedirectURL: string *    # Ebury (CBS) login pages
}

Errors

{
    code: string *,
    description: string *
}

Where code and description go such as:

Code	Description
400	Bad request error, generic message sent to the PSU
500	Internal server error, generic message sent to the PSU
503	CBS IS down, generic message sent to the TPP

Stage 2: Ebury Authentication

At Stage 2. the DBP is handing over the initiative to the CBS, so that custom authentication could be performed.

The underlying workflow is very similar to Ebury API Auth, supporting both Simple and Two-factor Authentication.

Process structure

Before we would describe the exact workflows, let us introduce the logic they've been built around. Keeping the sketch in mind simplifies the understanding of the upcoming detailed diagrams.

We aim to have organizational units (endpoints) with well-defined functionalities, suited to sub-tasks of the workflow, re-usable both in the Simple and the Two-factor authentication flow.

Therefore we did our best to decouple common behaviors and split specific ones. Which may seem complex at the level of details. Yet, considered as an implementation of the basic idea below, complexity gets slightly reduced.

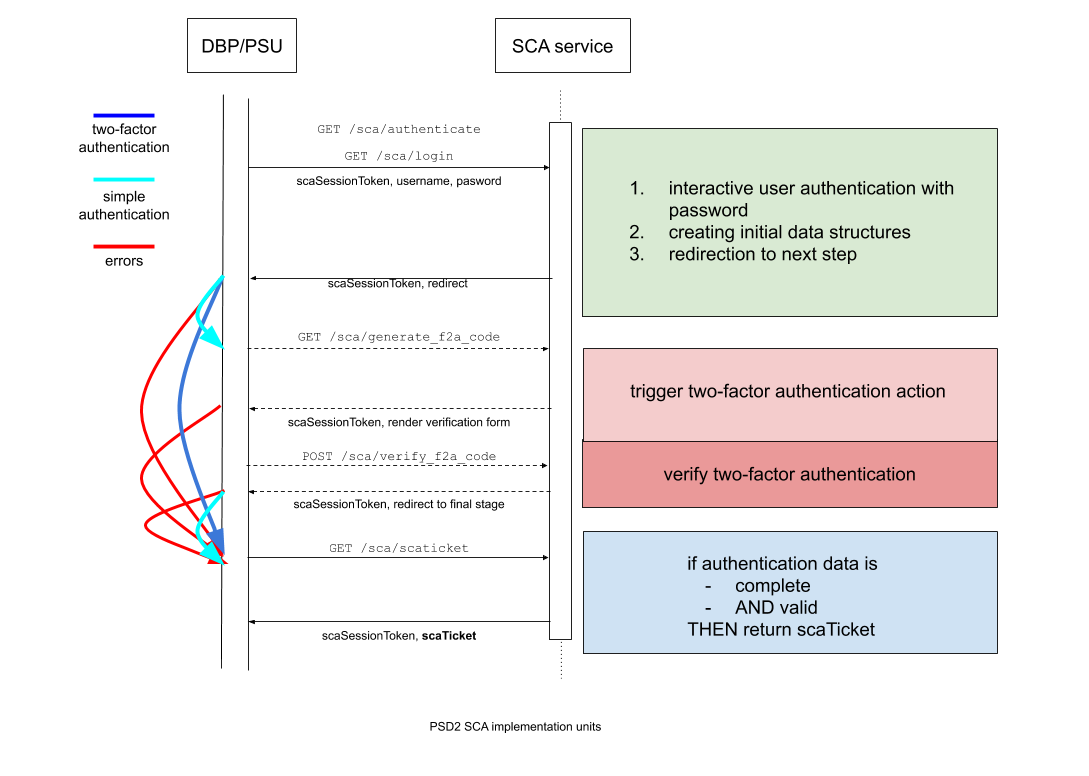

SCA workflow Ebury Implementation Units

Simple Authentication only contains

the interactive, password-based authentication part of the workflow (green)
redirecting to the final stage (blue) where both the initiative and the session identifiers are returned to the DBP.

Two-factor Authentication starts the same way, but after the password-based authentication (green), the redirection doesn't occur to the final stage (blue). Instead

it goes to the endpoint that is triggering the second stage of Two-factor Authentication (pink)
- where the verification code is sent to the PSU
- a form is rendered, where the user has to submit the verification code received
the next endpoint (dark pink) is performing code verification
afterwards redirection goes towards the final stage (blue)

On any errors the flow is interrupted, jumping directly at the final stage (blue).

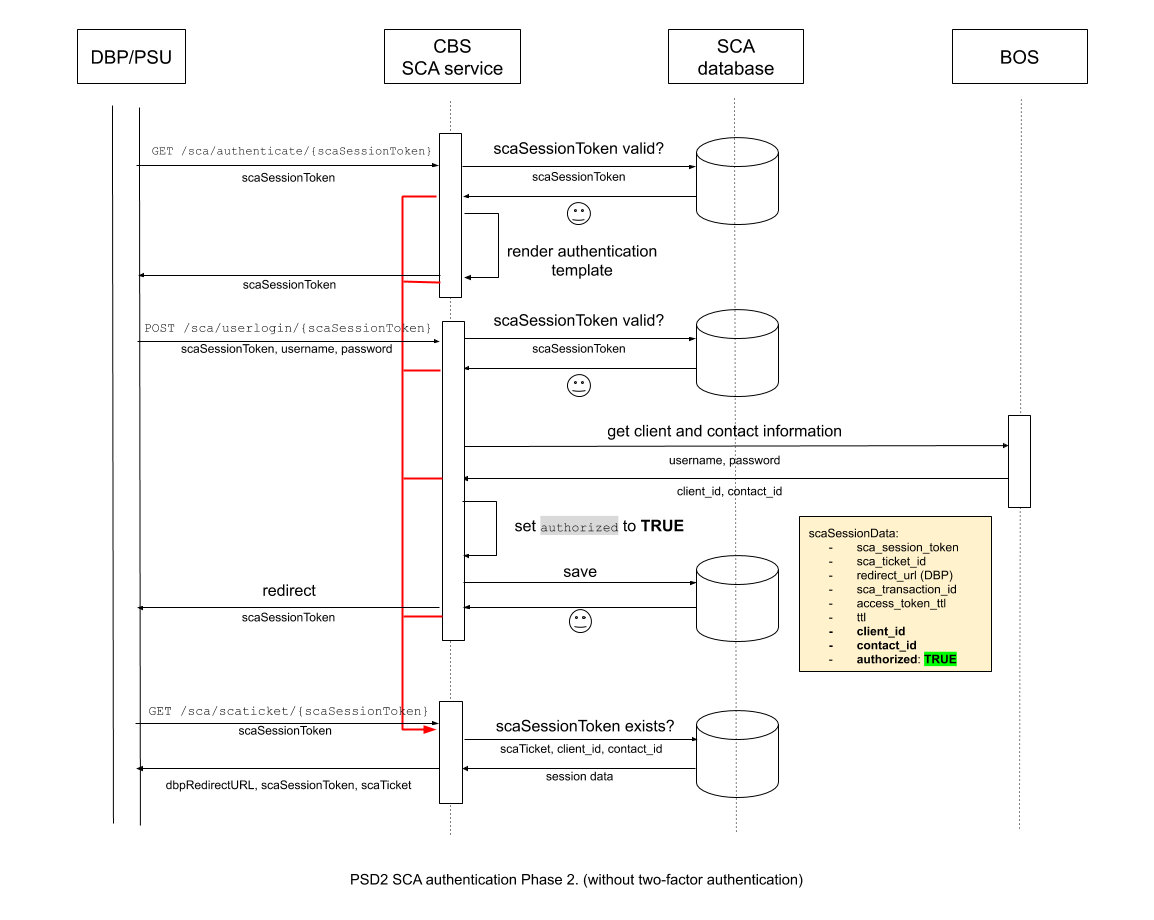

2.a Simple authentication

DBP redirects the PSU to the CBS authentication URL (cbsRedirectURL) received in Stage 1.

GET /sca/authenticate/{scaSessionToken}
- Supposing that the session is valid
- an interactive authentication form is rendered,
- where the PSU has to submit credentials to the CBS.
POST /sca/userlogin/{scaSessionToken}
- On form submission, again, the validity of the session is confirmed,
- then user credentials are checked against the BOS registry,
- user data is retrieved and saved on success,
- internal session data is updated recording to the status of the authentication
- and a redirecion occurs to the final step.
GET /sca/scaticket/{scaSessionToken}
- After checking session validity
- redirection to the DBP occurs, with both session identifiers (scaSessionToken, scaTicket).

On any errors redirection occurs to the final endpoint (3).

If session data reached the end of time-to-live, and session identifiers (scaSessionToken, scaTicket) are not available anymore, an 401 error can be returned to the PSU.

SCA workflow Ebury Phase 2a

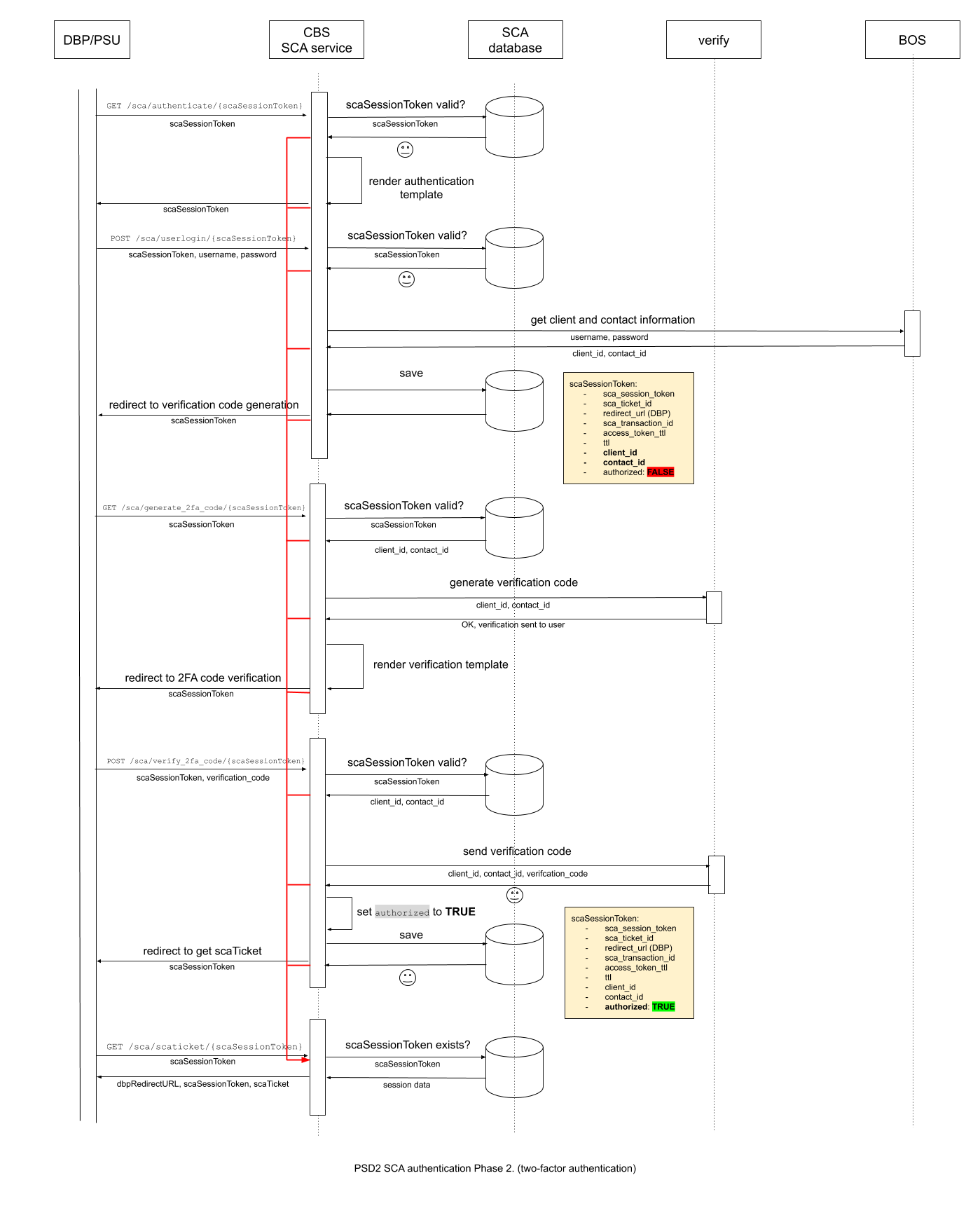

2b. Ebury Authentication, two-factor authentication

The two-factor authentication is slightly more complex.

The beginning of the workflow is identical to Simple Authentication, up to the point that user data is retrieved from BOS in response to valid user credentials,
- yet internal authentication status is not updated (default value still applies).
GET /sca/generate_2fa_code/{scaSessionToken}
- Ebury Verify service is contacted, requesting a validation code to be sent to the user.
- Having obtained the code, a second form is rendered, where the user can enter the verification code.
POST /sca/verify_2fa_code/{scaSessionToken}
- On reception of the code submitted by the user, session validity is checked again.
- Ebury Verify service is contacted again, asking for code verification.
- On a successful response from Ebury Verify service, finally internal authentication status is updated.
The final step is identical to the one in Simple Authentication

Error handling is also identical to Simple Authentication

SCA workflow Ebury Phase 2b

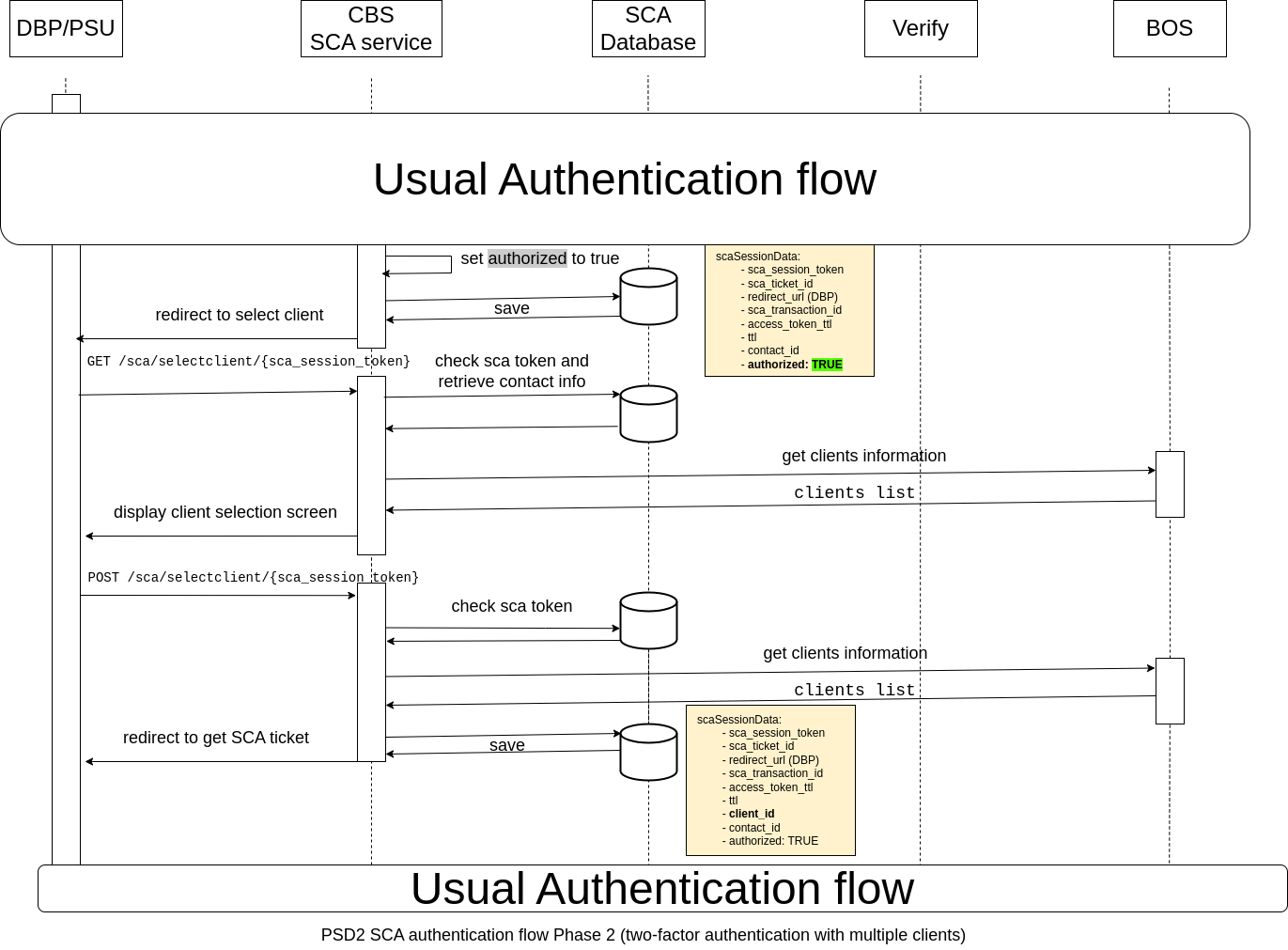

2.c Authenticated user has different clients

This applies to both simple and two-factor-authentication cases.

In the case of Simple Authentication, the workflow goes as explained until POST /sca/userlogin/{scaSessionToken}:

POST /sca/userlogin/{scaSessionToken}
- Validation is done as previously.
- When the information is retrieved from BOS, multi-client account is detected.
- Internal session data is updated recording to the status of the authentication and the user is redirected to GET /sca/selectclient/{scaSessionToken}.
GET /sca/selectclient/{scaSessionToken}
- The system checks the available clients from the account linked to the SCA session and creates a small HTML page.
- The user is displayed a selection screen. The user can select the client to use between the available clients from their account.
- When the user selects a client and presses the confirm button, a request to POST /sca/selectclient/{scaSessionToken} is sent to the CBS.
POST /sca/selectclient/{scaSessionToken}
- The request contains the specific client the user has selected.
- The system checks that the received client is one of the available clients for the account logged in.
- If the client is available, it is stored with the rest of the session data, as it would normally already have been stored if the account was not multi-client. The usual redirect to the DBP occurs,
GET /sca/scaticket/{scaSessionToken}
- Flow continues as the normal Simple Authentication process.

In the case of Two Factor Authentication, the workflow goes as explained until POST /sca/verify_2fa_code/{scaSessionToken}:

POST /sca/verify_2fa_code/{scaSessionToken}
- Validation is done as previously.
- When the successful response from Ebury Verify service is received, internal authentication status is updated, and multi-client account is detected.
- The user is redirected to GET /sca/selectclient/{scaSessionToken}.
The rest of the steps are identical to the previous case with Simple Authentication for multi-client accounts.

The reason to use the GET /sca/selectclient/{scaSessionToken} request is to avoid having to create two separate flows for each case. This way, each flow just redirects to the Client Selection request and the requests handles that part regardless of the authentication process.

SCA workflow Ebury Phase 3b

GET `/sca/authenticate/{scaSessionToken}`

Actions:

Checking the validity of the session.
Rendering login template.

Parameters

scaSessionToken

Headers

Standard HTTP headers

Response

POST `/sca/userlogin/{scaSessionToken}`

Initial status:

As of a form action, a username and password are received in the payload.

Actions:

Checking the validity of the session.
Checking user credentials against BOS, receiving user data in return.
In case of Simple Authentication, the authorized flag is set to TRUE on success.
New (client_id, contact_id) or updated (authorized, if applies) data is saved internally. If the user has multiple-clients, client_id column is not filled yet.
The corresponding redireciton occurs
- Simple Authentication: towards the last endpoint in Stage 2. (unless it is a multi-client user, in which case it is redirected to the client selection screen)
- Two-factor Authentication: towards second-level verification

NOTE: brand information is fixed (see Overview).

Payload

{
    scaSessionToken: string *,
    username: string *,
    password: string *,
}

Response

Redirection to the corresponding next step of the authentication flow.

Simple Authentication: GET /sca/get_scaticket
Two-factor Authentication: GET /sca/generate_2fa_code

GET `/sca/generate_2fa_code/{scaSessionToken}`

Only used in two-factor authentication flows.

Actions:

Checking the validity of the session, on positive response, internal session data is returned.
The Ebury Verify service is contacted, requesting a verification code to be sent to this particular user.
On a positive response, an HTML form is rendered where the user can enter the verification code.

Headers

Standard HTTP headers

Parameters

scaSessionToken

Response

Code verification HTML template rendered, with POST action to /sca/verify_2fa_code/{scaSessionToken} at form submission.

POST `/sca/verify_2fa_code/{scaSessionToken}`

Only used in two-factor authentication flows.

Initial status:

As of a form action, a user verification code was sent in the payload.

Actions:

Checking the validity of the session, on positive response, internal session data is returned.
The Ebury Verify service is contacted for code verification for this specific user.
On success, internal authentication status is updated and saved.
At the end a redirect is applied towards last endpoint of Stage 2. (unless it is a multi-client user, in which case it is redirected to the client selection screen)

NOTE: User brand information is fixed (see Overview).

Headers

Standard HTTP headers

Payload

{
    verify: string *            # Verification code submitted by PSU
}

Response

Redirect to the /sca/scaticket/{scaSessionToken} endpoint.

GET `/sca/selectclient/{scaSessionToken}`

Only used in multi-client authentication flows.

Actions:

Checking the validity of the session.
BOS service is contacted, requesting the client list for this particular user.
An HTML form is rendered where the user can select the Client to log as.

Headers

Standard HTTP headers

Parameters

scaSessionToken

Response

Client selection HTML template rendered, with POST action to /sca/selectclient/{scaSessionToken} at form submission.

POST `/sca/selectclient/{scaSessionToken}`

Only used in multi-client authentication flows.

Initial status:

As of a form action, the selected client received in the payload.

Actions:

Checking the validity of the session.
Check the available clients for the user in BOS.
If the client is accepted, the client_id is set.
At the end a redirect is applied towards last endpoint of Stage 2.

Payload

{
    scaSessionToken: string *,
    client_id: string *,
}

Response

Redirect to the /sca/scaticket/{scaSessionToken} endpoint.

GET `/sca/scaticket/{scaSessionToken}`

Final endpoint of the Stage 2. workflow.

Actions:

Checking the validity of the session, on positive response, internal session data is returned.
Adjust parameters according to contents of dbpRedirectURL
- scaSessionToken may be part of it, make sure not to duplicate
Redirection to the DBP redirection URL (saved in Stage 1) handing back the control to the DBP.

Headers

Standard HTTP headers

Parameters

scaSessionToken

Response

Redirect to redirectURL_DBP with scaSessionToken and scaTicket as parameters.

Errors

{
    code: string *,
    description: string *
}

Where code and description go such as:

Code	Description
401	Session data doesn't exist

3. Creating access token, closing the session

This is the stage where the CBS Access Token, the main target of the whole workflow is generated. This "Oauth2-like" token provides access to CBS services for the PSU.

Once post-authentication actions are completed on DBP side, a request is sent to CBS. Based on the authentication status stored on CBS-side, one of the following use cases apply:

On success, the CBS Access Token is generated, with the corresponding lifetime (set in Stage 1.)
If the authentication failed, no access is provided for the PSU

Finally, authentication session data is removed on CBS-side. Authentication status is returned to the DBP, together with CBS Access Token (if any).

The corresponding endpoint contract is strictly regulated by eWL.

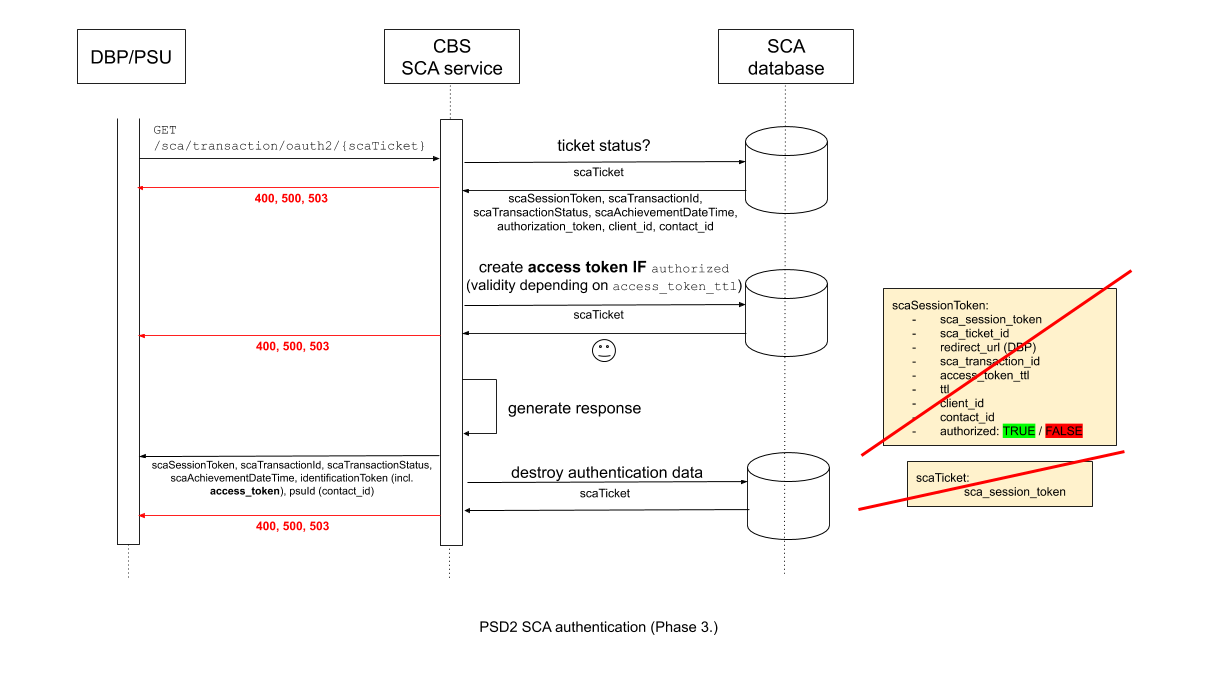

SCA workflow Ebury Phase 3

`GET /sca/transaction/oauth2/{scaTicket}`

Actions:

Checking the validity of the scaSessionTicket, on positive response, internal session data is returned.
On positive internal authentication status, an Access Token is generated for the user with the lifetime set in Stage 1.
Response to DBP is created
Session data is destroyed
Authentication status together with the Access Token is returned to the DBP

Headers

{
    Request-ID: string *,   # ID of the request, unique to every call from a TPP or PSU
    tppId: string *,        # Id of the Third Party Provider
    tppName: string *       # Name of the Third Party Provider
}

Parameters

scaSessionToken

Response (`200 OK`)

{
    scaSessionToken: string *
    scaTransactionId: string *          # scaTransactionId
    scaTransactionStatus: string *      # Enum: "SCA_OK", "SCA_EXEMPTED", "SCA_NOK", "SCA_CANCEL", "SCA_TIMEOUT", "SCA_OTHER_ERROR", "REQUEST_REJECTED"
    scaAchievementDateTime: string *    # Timestamp of the invaliation of scaTicket (YYYY-MM-DDTHH:mm:ssZ)
    psuData: {
        identificationToken: string *   # String value composed of "access_token#client_id#contact_id"
        psuId: PSUId string *           # contact_id
    }
}

Errors

{
    code: string *,
    description: string *
}

Where code and description go such as:

Code	Description
400	Bad request error, generic message sent to the PSU
404	SCA ticket does not exist, generic message sent to the TPP
500	Internal server error, generic message sent to the PSU
503	CBS IS down, generic message sent to the TPP

Alternatives

We were considering to create a new, separate service specifically to implement PSD2 SCA authentication functionality.

However at the end we found too much in common with the already existing API Auth service.

very similar workflows
same templates to render
database usage is so much alike, that the same DynamoDB database should be re-used.

Therefore we decided that adding new functionality to the Ebury API Auth serice is more convenient.

Caveats

Current Ebury authentication flows don't take most of the extra information sent by the DBP (payment details, TPP information, etc.) into consideration. Changes may need to be applied if this data would get more significance in the future.

Operation

All new functionality will run under the wings of the already existing Ebury API Auth service. No changes or additional infrastructure or service configuration is required.

Security Impact

Authentication is surely a security-sensitive matter.

In order to preserve security standards, we:

follow PSD2 standard workflows
follow already existing Ebury patterns
use Equens Worldline as a DBP
take advantage of automatic validity lifetime handling by DynamoDB
we use unique identifiers for each individual session
we don't reveal any sensitive data throughout the workflow
we strictly control authentication status internally

Performance Impact

Neither the workflows, nor the impacted services introduce anything radically new to Ebury authentication flows.

Of course, opening up a new service will produce extra load by intended usage. (If sensible defaults may not be suitable, we may need to adjust those if needed for sufficient service performance.)

Furthermore we need to take into account extra load generated against the Ebury Verify Service.

Automatic expiration times on session information allows us to keep databases concise, and prevent us from storing outdated information. Data dependencies are aging together, thus locking references can't occur.

Developer Impact

All these solutions are brand-new in Ebury, specifically targeting PSD2 compliancy.

As for the Ebury API Auth service: none of the already exising functionality should be impacted.

Data Consumer Impact

Any data input/output is one of:

internal
strictly regulated by eWL (DBP)

Thus expected data flows are preserved towards eWL, and noone else should be impacted.

Deployment

All these changes should be rolled out natively as an Ebury API Auth service upgrade.

Dependencies

This task is self-containing, no dependencies.

References

Ebury API Auth: https://docs.ebury.rocks/#authentication

EquensWorldline Swagger: https://documentation.rce-mbwl.as8677.net/swagger/#!/

EquensWorldline Documentation: https://documentation.rce-mbwl.as8677.net/docs/Workflow-SCA-on-CBS_179962700.html

Keys	Action
`?`	Open this help
`n`	Next page
`p`	Previous page
`s`	Search

PSD2 Strong Customer Authentication

Problem Description

Background

The Authentication Workflow

The scaTicket

Stage 1.

Stage 2.

Stage 3.

Solution

Overview

Stage 1: Initializing the session

POST /sca/transaction/oauth2

Header:

Payload

PIS Consent

AIS Consent

Response (200 OK)

Errors

Stage 2: Ebury Authentication

Process structure

2.a Simple authentication

2b. Ebury Authentication, two-factor authentication

2.c Authenticated user has different clients

GET /sca/authenticate/{scaSessionToken}

Parameters

Headers

Response

POST /sca/userlogin/{scaSessionToken}

Payload

Response

GET /sca/generate_2fa_code/{scaSessionToken}

Headers

Parameters

Response

POST /sca/verify_2fa_code/{scaSessionToken}

Headers

Payload

Response

GET /sca/selectclient/{scaSessionToken}

Headers

Parameters

Response

POST /sca/selectclient/{scaSessionToken}

Payload

Response

GET /sca/scaticket/{scaSessionToken}

Headers

Parameters

Response

Errors

3. Creating access token, closing the session

GET /sca/transaction/oauth2/{scaTicket}

Headers

Parameters

Response (200 OK)

Errors

Alternatives

Caveats

Operation

Security Impact

Performance Impact

Developer Impact

Data Consumer Impact

Deployment

Dependencies

References

`POST /sca/transaction/oauth2`

Response (`200 OK`)

GET `/sca/authenticate/{scaSessionToken}`

POST `/sca/userlogin/{scaSessionToken}`

GET `/sca/generate_2fa_code/{scaSessionToken}`

POST `/sca/verify_2fa_code/{scaSessionToken}`

GET `/sca/selectclient/{scaSessionToken}`

POST `/sca/selectclient/{scaSessionToken}`

GET `/sca/scaticket/{scaSessionToken}`

`GET /sca/transaction/oauth2/{scaTicket}`

Response (`200 OK`)
